FMCA1100

The UL and cUL Listed FMCA1100 raised access floor box assembly combines flexibility, ease of installation, high capacity, and long-term value in an economical floor box assembly.

Unique design and 12 gauge cover supports loads in excess of the 300lb UL standard. Ideal for classrooms, houses of worship, conference rooms, courtrooms, performance venues or anywhere connections are needed in the floor. The attractive design and finish allows for the FMCA1100 to also be used for in-wall applications.

FMCA1100 floor box assembly includes: 1ea cover, 1ea gasket, 1ea basket, mounting screws and hardware.

Insert panel, duplex power option and rough-in box ordered separately.

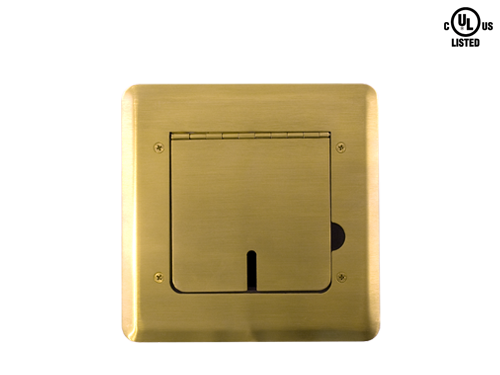

Attractive solid brass 11 gauge cover, hand polished to a satin finish

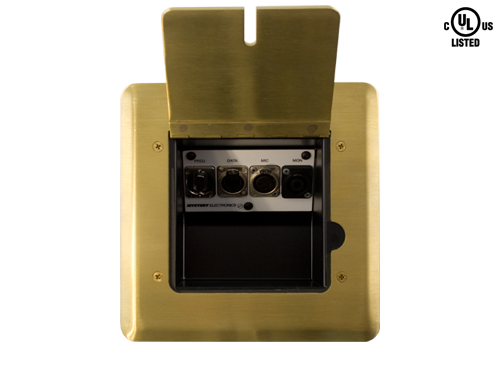

Accepts all ModuLine Insert Panels (up to 4 XLR type connectors, active devices or duplex power)

Cable Slot allows 4 cables up to 1/4" O.D.

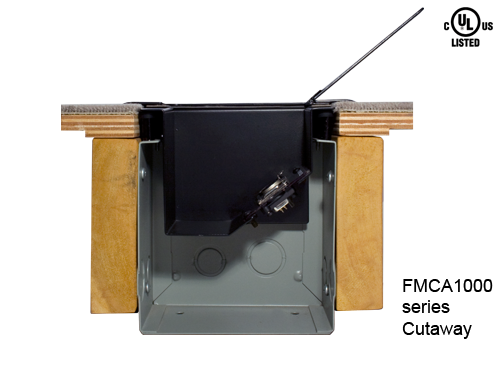

Self-trimming cover installs on top of carpet or hard surface

Accommodates Decora®, AAP®, and MAAP® active devices

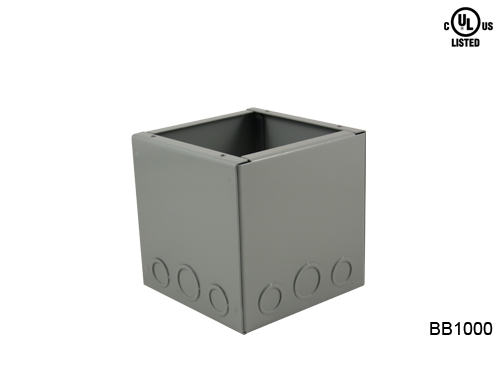

Concrete rated rough-in box for installation above grade
