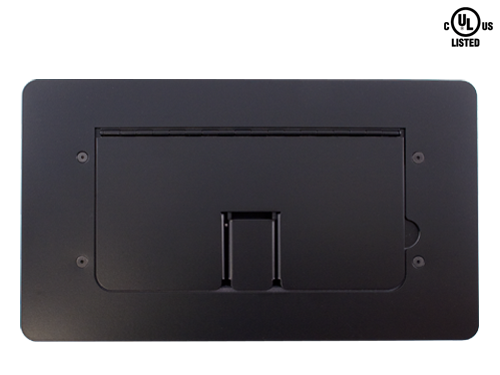

FMCA2200
Important note: The FMCA2200 floor box cover must be routed into the finished surface of the floor to avoid a trip hazard and install correctly. The flat trim option is not suitable for
use on top of carpet, concrete, sheet vinyl, vinyl, tile or similar hard suface materials. The flat trim option should only be used when inset into wood, grouted masonry tile, terrazzo or poured composition flooring,
and intallation requires significant coordination between several trades / special care during installation to ensure a proper result. Please use the FMCA2000 or FMCA2400 with integral bevelled edge as an alternate if not
routing the floor.
The UL and cUL Listed FMCA2200 raised access floor box assembly combines flexibility, ease of installation, high capacity, and long-term value in an economical floor box assembly.
Unique design and 12 gauge cover supports loads in excess of the 300lb UL standard. Ideal for classrooms, houses of worship, conference rooms, courtrooms, performance venues or anywhere connections are needed in the floor. The attractive design and finish allows for the FMCA2200 to also be used for in-wall applications.

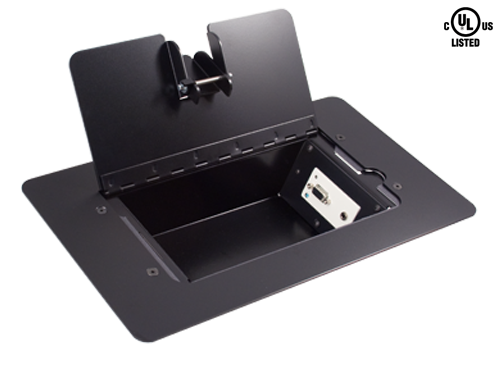

FMCA2200 floor box assembly includes: 1ea cover, 1ea gasket, 1ea basket, mounting screws and hardware.

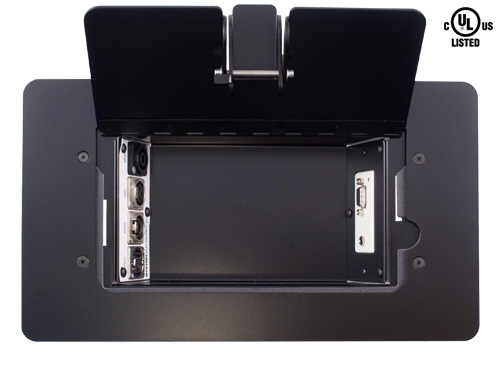

Insert panels, duplex power option and rough-in box ordered separately. Attractive satin black 12 gauge scratch resistant cover with powder coated finishAccepts all ModuLine Insert Panels (up to 8 XLR type connectors, active devices or duplex power)
Cable Door allows large cables up to 1.25" O.D.
Flat trim installs flush with finished floor
Accommodates Decora®, AAP®, and MAAP® active devices

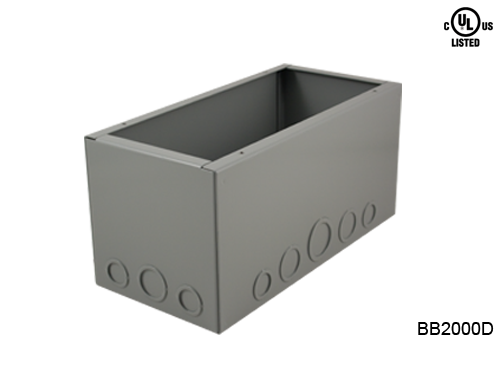

Concrete rated rough-in box for installation above grade
